CT7

Reflectometer-Scatterometer

CT7 Download


CT7 (Sept. 2023)

CT7 Package zip: version: 1.9.2; file CT7.zip  download

 in this version:

  • - easier  parameters upload to CT7, easier  Display and DSP firmware upgrade (new buttons)
  • - CT7 result memory RAW-data-dump (to a text file) available at Data Management Panel

IMPORTANT NOTE:

In 2022 we have developed a new hardware generation with different multiplexing components.  For this reason we include twice the  DSP.bin code

  2.0.04 for CT7 generation 2016

and

  2.1.04 for CT7 generation 2022

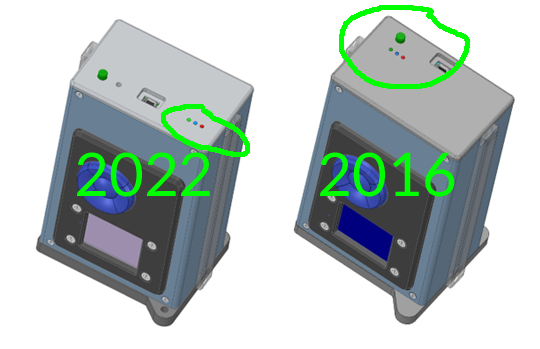

How to check which generation you have?  Look at the CT7 top!     Use the correct software!






Installation instructions:
  1. Download zip and extract to My Documents.  ( at local disk)
    1. New installation: a  . /CT7 folder will be created
    2. Existing installation;: new files will be merged into existing /CT7 folder, some files will be replaced
  2. Go to CT7/Install folder and execute Setup.
    1.  when setup folder has changed, the installer refuse to intall-  remove existing CT7 PC Console with Windows-Settings-App&Features  tool .


Included versions:


CT7 Console software version :  2.1.07;

CT7 DSP software version:          2.0.04 ; /2016/

CT7 DSP software version:          2.1.04 ; /2022/

CT7 OLED software version:       1.2.16;

CT7 User Manual revision:          11;

 - sample configuration files



CT7 / CT7A  (2019)

CT7 /CT7A  Package zip: version: 1.8.03; file CT7.zip  download

Release: 2019-09-11

Version notes:
  • Wavelength labels are imported from CT-7 Instrument in function of LED sources actually installed
  • Automatic search for the latest User Manual  in /CT7/Documentation folder. Updated User Manual v7.
  • All instruments since 2015 are upgradable to version 2019/2023, please feel free to contact-us


Legacy versions


CT7 2018  Chart+Increased internal precision to 0.00 format. Package zip: version: 1.8.00; download
CT7 2015  High Precision Head and Li Ion batteries. Package zip: version: 1.5.00; download
CT7 2014  High Precision. Package zip: version: 1.4.00;  download
CT7 2012 (delivered before July 2014): contact:  pawel.woszczyk@a1pixel.pl



CT7 USB driver and installation notes:


USB driver for CT7 instrument (XP and Vista) (zip file 1300k)  download



Read Installation notes:


XP and Vista: Read Note 005

Windows 7,8,10:   Read Note 006
